Product Description
- Non-Containerized Brine Tank Type and Containerized Brine Tank type available
- Clean and sanitary without impurities, edible.
- High density, hard, not easy to melt.
- Options of galvanized steel plate or stainless steel ice can available.
- Easy to transport by road, rain or ship. And provide shortest time to delivery and installation of any equipment type, requires only solid ground for safe deployment. (For Containerized Brine Tank type)
- Can be used in field such as ice factories at ports and docks, fresh preservation and cooling of aquatic products and foods for line haul, temperature reduction and cooling in some specific fields, ice structures, etc.
Product Specification
Ice Size
| Weight (kg/block) | Dimension (L x W x H) mm | Ice Making Time (Hour) | Batch (times) |
| 10 | 155 x 100 x 750 | 5.5 | 4 |
| 20 | 245 x 125 x 750 | 7.5 | 3 |
| 25 | 315 x 125 x 750 | 7.5 | 3 |
| 50 | 480 x 160 x 750 | 11.5 | 2 |
| 75 | 420 x 200 x 1000 | 19.5 | 1 |
| 100 | 500 x 220 x 1000 | 22.5 | 1 |

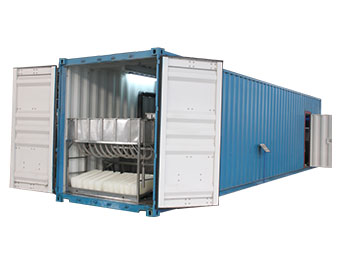

Containerized Brine Type
| Container Type | 20 ft Container | 40 ft Container | |||
| Capacity (kg/24hr) | 1000 | 3000 | 5000 | 8000 | 10000 |
| Refrigerant |
R22 / R404A |
||||
| Total Running Power (kW) | 6 | 14 | 20.9 | 30.8 | 34.9 |
| Operating Weight (kg) | 960 | 2180 | 3820 | 5600 | 7400 |
| Dimension L x W x H (mm) | 6058 x 2438 x 2591 | 6058 x 2438 x 2591 | 6058 x 2438 x 2591 | 12192 x 2438 x 2895 | 12192 x 2438 x 2895 |
